10. The raies of the same, or of an equall periphery, are equall.
The reason is, because the same right line is every where converted or turned about. But here by the Ray of the periphery, must bee understood the Ray the figure contained within the periphery.
11. If two equall peripheries, from the ends of equall shankes of an assigned rectilineall angle, doe meete before it, a right line drawne from the meeting of them unto the toppe or point of the angle, shall cut it into two equall parts. 9. p j.
Hitherto we have spoken of plaine lines: Their affection followeth, and first in the Bisection or dividing of an Angle into two equall parts.
Let the right lined Angle to bee divided into two equall parts bee eai. whose equall shankes let them be ae. and ai. (or if they be unequall, let them be made equall, by the 7 e.) Then two equall peripheries from the ends e and i. meet before the Angle in o. Lastly, draw a line from o. unto a. I say the angle given is divided into two equall parts. For by drawing the right lines oe. and oi. the angles oae. and oai. equicrurall, by the grant, and by their common side ao. are equall in base eo. and io. by the 10 e (Because they are the raies of equall peripheries.) Therefore by the 7. e iij. the angles oae. and oai. are equall: And therefore the Angle eai. is equally divided into two parts.
12. If two equall peripheries from the ends of a right line given, doe meete on each side of the same, a right line drawne from those meetings, shall divide the right line given into two equall parts. 10. p j.

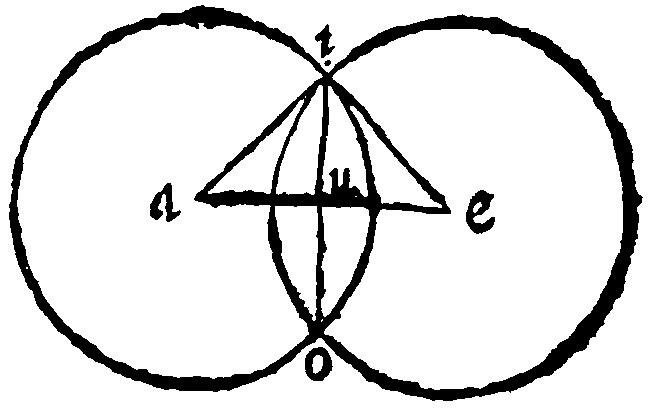

Let the right line given bee ae. And let two equall peripheries from the ends a. and e. meete in i. and o. Then from those meetings let the right line io. be drawne. I say, That ae. is divided into two equall parts, by the said line thus drawne. For by drawing the raies of the equall peripheries ia. and ie. the said io. doth cut the angle aie. into two equall parts, by the 11. e. Therefore the angles aiu. and uie. being equall and equicrurall (seeing the shankes are the raies of equall peripheries, by the grant.) have equall bases au. and ue. by the 7. e iij. Wherefore seeing the parts au. and ue. are equall, ae. the assigned right line is divided into two equall portions.
13. If a right line doe stand perpendicular upon another right line, it maketh on each side right angles: And contrary wise.

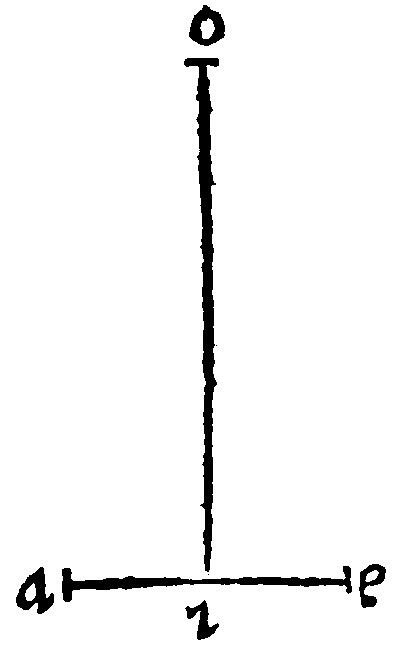

A right line standeth upon a right line, which cutteth, and is not cut againe. And the Angles on each side, are they which the falling line maketh with that underneath it, as is manifest out of Proclus, at the 15. pj. of Euclide; As here ae. the line cut: and io. the insisting line, let them be perpendicular; The angles on each side, to witt aio. and eio. shall bee right angles, by the 13. e iij.

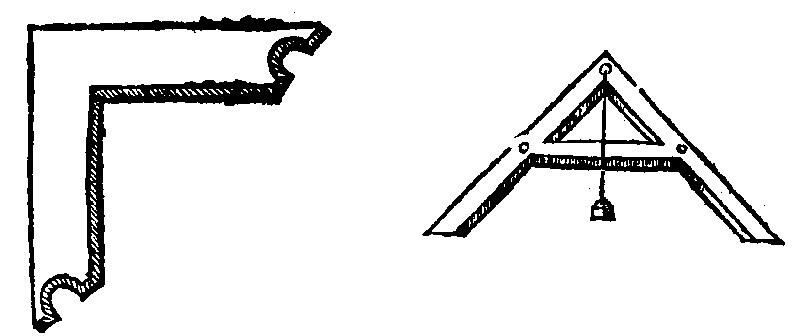

The Rular, for the making of straight lines on a plaine, was the first Geometricall instrument: The Compasses, for the describing of a Circle, was the second: The Norma or Square for the true erecting of a right line in the same plaine upon another right line, and then of a surface and body, upon a surface or body, is the third. The figure therefore is thus.

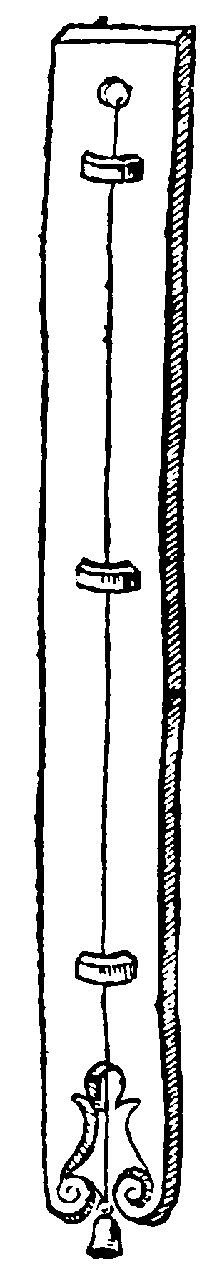

Now Perpendiculū, an instrument with a line & a plummet of leade appendant upon it, used of Architects, Carpenters, and Masons, is meerely physicall: because heavie things naturally by their weight are in straight lines carried perpendicularly downeward. This instrument is of two sorts: The first, which they call a Plumbe-rule, is for the trying of an erect perpendicular, as whether a columne, pillar, or any other kinde of building bee right, that is plumbe unto the plaine of the horizont & doth not leane or reele any way. The second is for the trying or examining of a plaine or floore, whether it doe lye parallell to the horizont or not. Therefore when the line from the right angle, doth fall upon the middle of the base; it shall shew that the length is equally poysed. The Latines call it Libra, or Libella, a ballance: of the Italians Livello, and vel Archipendolo, Achildulo: of the French, Nivelle, or Niueau: of us a Levill.
Therefore
14. If a right line do stand upon a right line, it maketh the angles on each side equall to two right angles: and contrariwise out of the 13. and 14. p j.
For two such angles doe occupy or fill the same place that two right angles doe: Therefore they are equall to them by the 11. e j. If the insisting line be perpendicular unto that underneath it, it then shall make 2. right angles, by the 13. e. If it bee not perpendicular, & do make two oblique angles, as here aio. and oie. are yet shall they occupy the same place that two right angles doe: And therefore they are equall to two right angles, by the same.

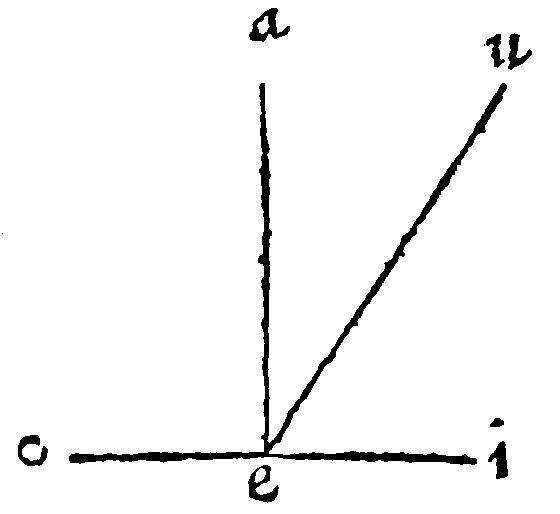

The converse is forced by an argument ab impossibli, or ab absurdo, from the absurdity which otherwise would follow of it: For the part must otherwise needes bee equall to the whole. Let therefore the insisting or standing line which maketh two angles aeo. and aeu. on each side equall to two right angles, be ae. I say that oe. and ei. are but one right line. Otherwise let oe. bee continued unto u. by the 6. e. Now by the 14. e. or next former element, aeo. & aeu. are equall to two right angles; To which also oea. & aei. are equall by the grant: Let aeo. the common angle be taken away: then shall there be left aeu. equall to aei. the part to the whole, which is absurd and impossible. Herehence is it certaine that the two right lines oe, and ei, are in deede but one continuall right line.
