INFORMATION AND MEASUREMENT SYSTEM FOR THE STUDY OF EARTHQUAKE PRECURSORS
Asatulla Urmanovich Maksudov
Senior Researcher at the Institute of Physics and Technology of the Academy of Sciences of the Republic of Uzbekistan
Institute of Physics and Technology of the Academy of Sciences of the Republic of Uzbekistan asaduz50@rambler.ru
Nurmamat Umaraliev
Candidate of Technical Sciences, Associate Professor of the Department of Electronics and Instrumentation of the Faculty of Computer Design Systems of the Fergana Polytechnic Institute
Ferghana Polytechnic Institute, Ferghana, Uzbekistan
ORCHID-0000-0001-9822-8115
nurmuhammad@bk.ru
Annotation. Currently, earthquake forecasting is one of the most pressing problems. Seismic disasters caused by earthquakes not only cause great economic damage, but also lead to the death of many people.
Keywords: harbinger, earthquake forecast, neutron and charged particle fluxes, measurements, monitoring, information and measurement system.
Аннотация. В настоящее время прогноз землетрясений является одной из наиболее актуальных проблем. Сейсмические катастрофы, вызванные землетрясениями, не только наносят большой экономический ущерб, но и приводят к гибели многих людей.
Ключевые слова: предвестник, прогноз землетрясений, потоки нейтронов и заряженных частиц, измерения, мониторинг, информационно-измерительная система.
The purpose of the study
The study of new earthquake precursors to address issues of short- and medium-term forecasting of the prameters of upcoming earthquakes. To achieve this goal, this work uses an indirect method of measuring controlled parameters, constant monitoring of the studied values and statistical methods of data processing, including regression analysis methods.
An information-measuring system is proposed for studying the correlation between earthquakes and neutron and charged particle fluxes emanating from the Earths crust, as well as a method for calibrating this information-measuring system.
This work uses an experimental research method. An indirect method of measuring earthquake parameters, such as magnitude, hypocenter coordinates, is proposed.
The results of preliminary experiments are presented. Informative signs are described, the presence of which makes it possible to predict the parameters of upcoming earthquakes. The minimum number of implementations necessary for constructing regression models of earthquake parameters has been determined. A block diagram of the parts of the information and measurement system, through which preliminary experiments were carried out, is also given. The method of calibration of the entire information and measurement system is described.
The main conclusions. During the analysis of the results of preliminary experiments conducted at different times in the cities of Tashkent and Ferghana, an assumption arose about the existence of a correlation between the parameters of an earthquake and neutron and charged particle fluxes, i.e. neutron and charged particle fluxes carry informative signs about upcoming earthquakes in the near future. According to this assumption, they can be attributed to the precursors of earthquakes.
An information and measurement system is proposed that will allow in-depth study of the relationship between the parameters of the upcoming earthquake and the fluxes of neutrons and charged particles by continuously monitoring them and subsequent statistical processing of accumulated data.
The conditions for the prediction of all parameters of the upcoming earthquake, such as the hypocenter, magnitude and time of the upcoming earthquakes, are determined.
Introduction
Currently, earthquake forecasting is one of the most pressing problems. Seismic disasters caused by earthquakes not only cause great economic damage, but also lead to the death of many people.
The main difficulty in predicting earthquakes is that an earthquake model has not been developed. In practice, there is no reliable method and device that could predict its location, time, energy or intensity, which could meet the practical requirements for both accuracy and speed. However, these requirements are divided not only by the level of knowledge about earthquakes, but also into forecasts for specific purposes, long-term forecasts or short-term forecasts, depending on different types of practical goals. At the moment, the short-term forecast is relevant. This is the basis for a clear warning of an impending disaster and taking urgent measures to reduce earthquake damage. This article presents information about a device and an information system designed to measure the parameters of a physical process that can serve for short-term forecasting.
In the patent of Uzbekistan for a utility model [1], a measuring device for short-term forecasting is proposed. In this device, charged particles and neutron fluxes coming from underground, acting on scintillation detectors, generate optical impulses, which are converted into electrical impulses using photoelectronic multipliers attached to scintillation detectors (Fig. 1). Thus, this device allows you to measure the flow of neutrons and charged particles coming from underground. Despite the insignificance of the magnitude of the flows, the nature of the change is likely to carry information about the main root cause of their occurrence. Continuous monitoring of the flow values will allow for a correlation analysis between them and between earthquake parameters. On the basis of correlation analysis, accurate methods for predicting an approaching earthquake can be created.

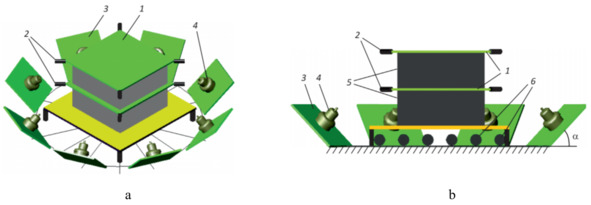

Fig.1. Device for measuring neutron fluxes and charged particles: a-axonometric view; b-front view in the section; coal α = 450; 1 central scintillation detectors; 2-FEU-84; 3-direction detectors, 4-FEU-125; 5-carbon absorbers; 6-neutron counters.
Such correlation analysis requires the results of very large-scale measurement work. That is, it is necessary to constantly monitor the values of the streams received by the device and record them in the appropriate information base. In addition, to study the dependence of these currents on the distance, at least three devices are necessary and they must be placed in the form of triangles at a distance of at least 200 km from each other in seismically active zones.
The earthquake parameters magnitude, time, coordinates of the hypocenter, charged particles and neutron fluxes from the devices proposed for prediction should be simultaneously recorded in one information database in chronological order.
In addition, the parameters of all earthquakes that occur during the monitoring of neutron fluxes and charged particles, such as time, magnitude and coordinates of the hypocenter should be included in the information base in chronological order.
To build an adequate regression model for predicting the parameters of the upcoming earthquake, the number of experiments should be no less than the number of corresponding sensors of the complex. For example, to build a regression model for predicting hypocenter parameters, based on the number of direction sensors, the number of experiments should be at least 24, and for magnitude prediction, the number of experiments should be at least 3.
This process is the learning mode of the proposed measurement and information system. Having collected a sufficient amount of statistical data in this mode, it will be possible to build a mathematical model predicting the parameters of the upcoming earthquake using regression analysis of measurement results. The proposed measurement and information system will then become a complex predicting the parameters of a possible earthquake. Like any SMART system, this system always works in the forecast-correction mode, while the accuracy of forecasting earthquake parameters increases.
The proposed measurement and information system is based on modern means of information transmission and information and communication technologies. Below is a block diagram of one channel of the measuring device of the measuring and information system:

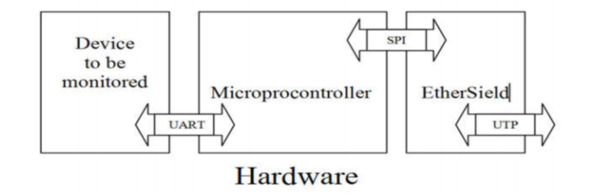

Fig. 2. Block diagram of the transmission of information from the measuring device
Here:
Device to be monitored the measuring device shown in Figure1.
UART- universal asynchronous receiver/transmitter universal asynchronous receiver transmitter;
Microcontroller microcontroller with analog-to-digital converter;
SPI serial information transfer interface;
EtherSield Ethernet module;
Hardware a set of programmable measuring devices.

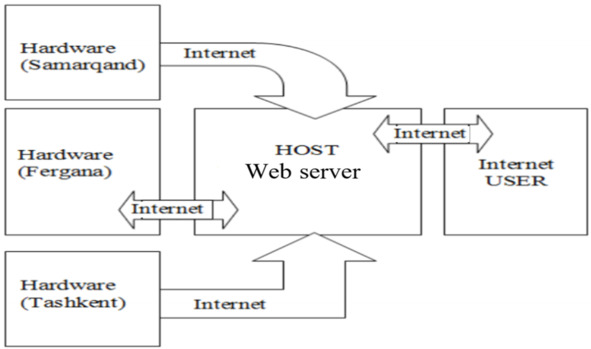

Fig. 3. Block diagram of the system
Here:
Hardware technical means of the system installed in the cities of Fergana, Tashkent, Samarkand;
A web server is an application server that collects and processes information.
In order to implement the proposed information and measurement system, three Software and Hardware measuring systems have been installed in the cities of Fergana, Tashkent and Samarkand. The measurement results obtained from these complexes are entered into the information base through the web server applications on the website pribori.uz. Figure 3 shows a block diagram of the system.
Fig. 4. Interface for visualization of system data
Figure 4 below shows the data visualization interface of the system.
Conclusions
During the analysis of the results of preliminary experiments conducted at different times in the cities of Tashkent and Ferghana, an assumption arose about the existence of a correlation between the parameters of an earthquake and neutron and charged particle fluxes, i.e. neutron and charged particle fluxes carry informative signs about upcoming earthquakes in the near future. According to this assumption, they can be attributed to the precursors of earthquakes.
The proposed information and measurement system will allow a deep study of the relationship between the parameters of the upcoming earthquake and the fluxes of neutrons and charged particles.
The conditions for the prediction of all parameters of the upcoming earthquake, such as the hypocenter, magnitude and time of the upcoming earthquakes, are determined.
Literature
1. A. U. Maksudov, M.A. Zufarov, Predvaritelnye dannye registratsii predvestnikov zemletryaseniya modernizirovannoi ustanovkoi, Comp. nanotechnol., 2017, no. 3, 3335
2. Regression models for earthquake prediction. Rakhimov R. H., Umaraliev N., Jalilov M. L., Maksudov A. U. Computational nanotechnology 2018, No. 2, 4042
3. Makhsudov A. U., Umaraliev N., Jalilov M. L., Zhyraev N. M. //Evaluation of the results of the parameters of the earthquake precursor measured by the detector// Republican Scientific and Technical Conference Mukobil energiya turlari va ulardan foidalanish istikbollari FerGU (May 12) Fergana 2017.
4. Asatulla U. Maksudov & Mars A. Zufarov, Measurement of neutron and charged particle fluxes toward earthquake prediction//Earthquake Science, ISSN 16744519, Earthq Sci, DOI 10.1007/s11589-017-0198-z;
5. B.S.Yuldashev, R.A.Muminov, A.U.Maksudov, Umaraliev N. et al. A new nuclear-physical method for registering earthquake precursors. DAN RUz, 2018, No. 1, pp. 46.
6. Maksudov A. U., (2017), Creation of global networks for registration of earthquake precursors. Computational nanotechnology. 1: 3335;
7. Maksudov A. U., (2016), Monitoring of seismic precursors for earthquake prediction. Computational nanotechnology. 1: 5261;
8. Kurskeev A. K., (2011), Earthquake and seismic safety. Almaty, Kazakhstan, EVRO, p. 504.
9. Yuldashbaev T. S., Maksudov A. U., (2010) Development of a method for registering earthquake precursors from observations of temporal variations in the flux of cosmic rays and neutrons. Reports of the Academy of Sciences of the Republic of Uzbekistan. V. 14, No. 3, pp. 144- 148.
10. Yuldashbaev T.S., Maksudov A.U., Preliminary results of the study of temporal variations of cosmic rays in a new experimental setup. Reports of the Academy of Sciences of the Republic of Uzbekistan, 2012, v.14, No. 3, pp. 1416.
11. Yuldashbaev T.S., Maksudov A.U., et al., (2012), Study of temporal variations in the flux of charged particles and low-energy neutrons. Uzbek Physical journal of the Academy of Sciences of the Republic of Uzbekistan, 3:1418.
12. Asatulla U. Maksudov & Mars A. Zufarov, Measurement of neutron and charged particle fluxes toward earthquake prediction//Earthquake Science, ISSN 16744519, Earth Sci, DOI 10.1007/s11589-017-0198-z;
13. Maksudov A. U., Zufarov M. A., Preliminary registration data for earthquake precursors by a modernized installation. Computational nanotechnology. No.3, M. 2017, p. 3335;
14. Maksudov A. U., et.al. Modernized registering device of harbingers of earthquakes// special issue of proceedings EMSEV2016 Institute of Earthquake Science, China Earthquake Administration, Fuxing Avenue 63, Haidian District, Beijing, 100036, China. 2017.
15. Rakhimov R. Kh., Makhsudov A. U., Zufarov M. A.//Nuclear-radioactive reactions in earth crust the generator of earthquake harbingers. Computational nanotechnology. No. 3, M. 2018g. p.6872. http: www.urvak.ru
16. Rakhimov R.Kh., Umaraliev N., Djalilov M.L., Maksudov A.U., (2018), Regressions models for forecasting of earthquakes. Computational nanotechnology. 3: 4345.
